Male-to-Male Header Pins
₵3.00

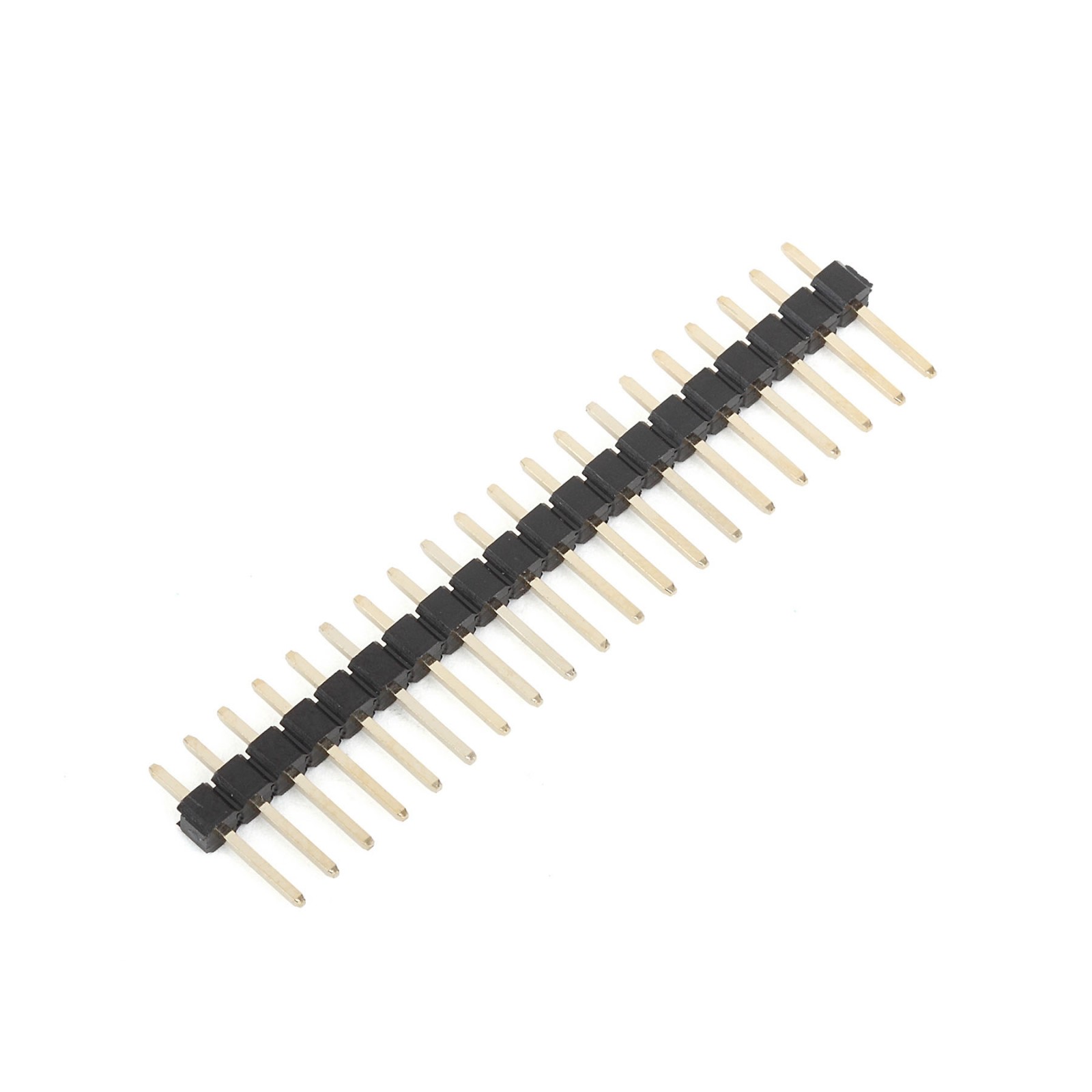

The Male-to-Male Header Pins are essential connectors used in electronic prototyping and PCB design. These headers feature straight metal pins spaced at the standard 2.54mm (0.1 inch) pitch, making them compatible with breadboards, Arduino boards, ESP modules, and a wide range of development platforms.
49 in stock
Designed as breakaway strips, they can be easily cut into the required number of pins, providing flexibility for both small and large projects.
Key Features
- Standard 2.54mm pitch (breadboard compatible)
- Male-to-male pin configuration
- Breakable design for custom pin lengths
- Strong and durable metal pins
- Easy to solder onto PCBs
- Ideal for prototyping and circuit connections
Specifications
- Pin Type: Male header
- Pitch: 2.54mm (0.1 inch)
- Number of Pins: Typically 40 pins per strip
- Material: Copper alloy with tin/gold plating
- Plastic Base: Insulated black spacer
- Orientation: Straight (vertical)
- Cuttable: Yes (breakaway design)
Applications
- Arduino and ESP32 projects
- Breadboard connections
- PCB design and soldering
- Sensor and module interfacing
- DIY electronics prototyping
- Robotics and embedded systems
Package Includes
- 1 × 40-Pin Male-to-Male Header Strip (cuttable as needed)
