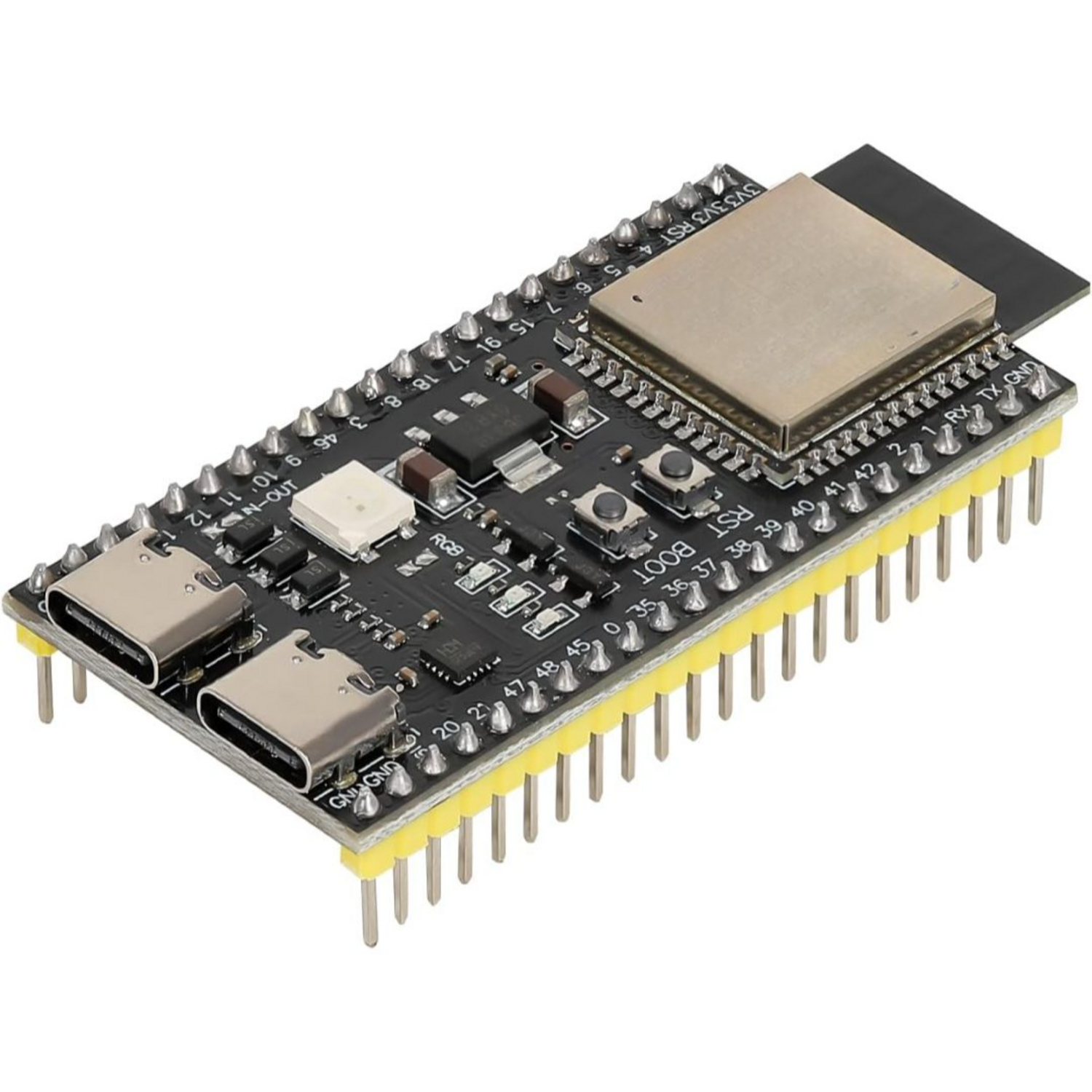

ESP32-S3 N16R8 (With Soldered Pin Header)
₵200.00
The ESP32-S3 N16R8 is a powerful development board designed for high-performance IoT, robotics, and AI projects. It comes with 16MB Flash and 8MB PSRAM, giving you plenty of space for advanced applications like cameras, sensors, web servers, and machine learning tasks.
4 in stock
This ESP32-S3 N16R8 (With Soldered Pin Header) includes pre-soldered pin headers, making it easy to plug directly into a breadboard or connect with jumper wires—perfect for students, makers, and prototyping.
Key Features
- ESP32-S3 Dual-core Xtensa LX7 MCU
- 16MB Flash + 8MB PSRAM
- Includes soldered pin headers for immediate use
- Built-in WiFi 2.4GHz + Bluetooth 5 (LE)
- Supports USB OTG and native USB programming
- Low-power modes ideal for battery-powered projects
- Rich set of GPIO pins with ADC, DAC, SPI, I2C, UART, PWM
- Supports ESP-IDF, Arduino IDE, CircuitPython, MicroPython
Specifications
| Parameter | Details |
|---|---|
| MCU | ESP32-S3 (Dual-core LX7, up to 240 MHz) |
| Flash Memory | 16MB |
| PSRAM | 8MB |
| Wireless | Wi-Fi 802.11 b/g/n + Bluetooth 5 (LE) |
| Operating Voltage | 3.3V |
| USB Support | USB Type-C for programming/power |
| GPIO Count | 30+ (varies by board version) |
| Interfaces | ADC, SPI, I2C, UART, PWM, USB-OTG |
| AI Acceleration | Vector instructions for machine learning |
Applications
- IoT devices and smart home projects
- Robotics and automation
- ESP32-CAM (camera-based) projects
- Web servers and dashboards
- Wearables & BLE applications
- MicroPython/CircuitPython learning
- Data logging & sensor systems
Package Includes
- 1 × ESP32-S3 N16R8 board
- Pre-installed soldered pin headers
