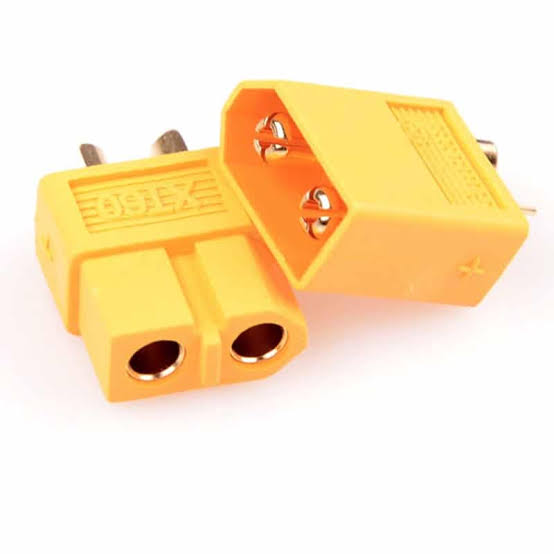

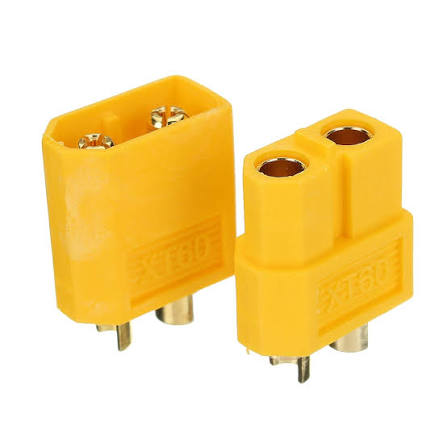

XT60 connector

Key Specifications & Features

• Current Rating: 60A continuous current handling (up to 90A peak bursts).

• Voltage Rating: Rated for DC voltages up to 500V.

• Material & Construction: Gold-plated brass bullet contacts housed inside high-temperature, flame-retardant nylon casing.

• Polarized Design: Keyed/asymmetrical housing shape prevents accidental reverse-polarity connections.

• Wire Compatibility: Designed to accept up to 12 AWG silicone wire (typically soldered directly to the terminals).

• Variants:

  • XT60-H: Features protective snap-on rear caps to insulate solder joints without needing heat shrink tubing.

  • XT60E-M / XT60-F: Panel-mount screw versions for securing connectors to chassis or enclosures.

Applications

• Battery Connections: Standard connector for LiPo (Lithium Polymer) and LiFePO4 battery packs.

• Robotics & RC: High-current power feeds for drones, RC cars, planes, and combat robots.

• Power Distribution: Connecting high-power DC buck/boost converters, solar systems, or custom power supply units.
