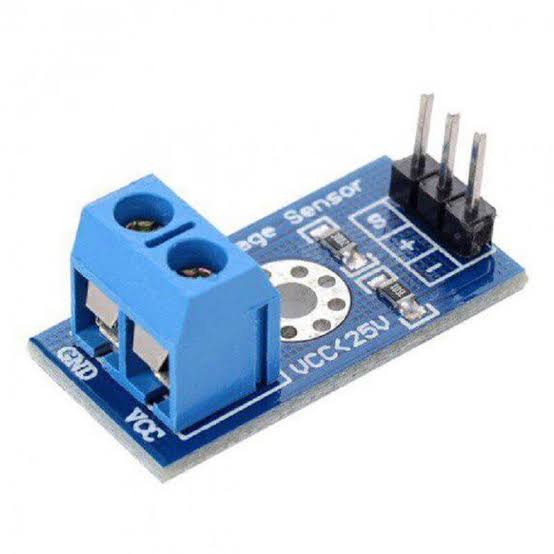

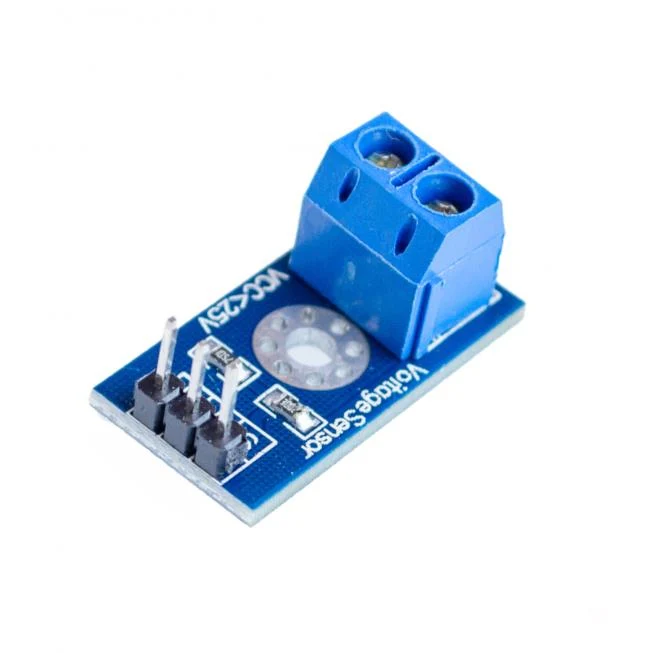

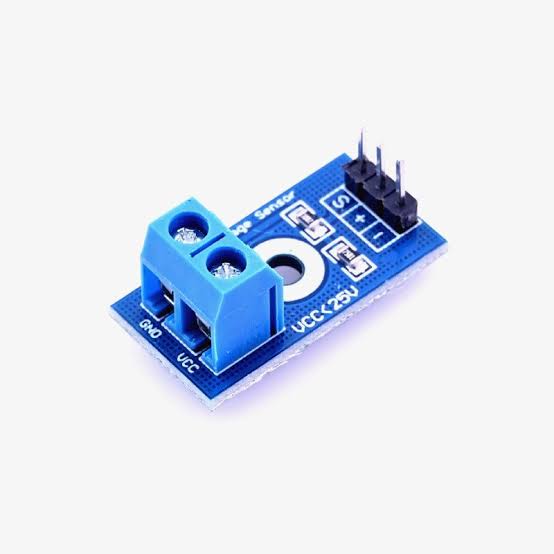

Voltage Sensor Module
₵25.00
Voltage Sensor Module (commonly based on a simple resistive voltage divider circuit) allows microcontrollers like Arduino, ESP8266, or ESP32 to measure DC voltages that exceed their maximum input limits (typically 3.3V or 5V).
10 in stock
🚚 Same-day delivery in Kumasi · Next-day nationwide
💳 Pay with MoMo, VISA or bank transfer
Key Specifications & Features
Voltage Input Range: 0V to 25V DC (when used with a 5V microcontroller) / 0V to 16.5V DC (with a 3.3V microcontroller).
Voltage Detection Range: Measures DC voltage up to 5 times the reference voltage input.
Divider Ratio: 5:1 (Internal resistor network of 30KΩ and 7.5KΩ).
Analog Resolution: High-precision analog output proportional to the measured DC voltage.
Interface:
Input Side (Terminal Block):
VCC(Positive DC supply to measure) andGND(Negative ground reference).Output Side (Header Pins):
S(Signal/Analog Out to microcontroller A/D pin),+(Unused/NC),-(Common ground connected to microcontroller GND).
Applications
Battery voltage monitoring and level detection for IoT or robotics projects.
Power supply status tracking in automated control systems.
Solar panel voltage monitoring.
