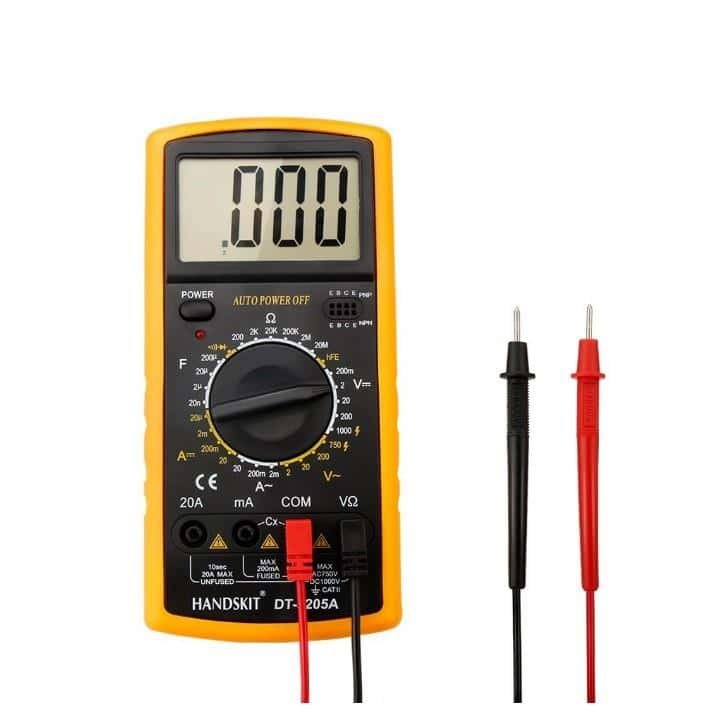

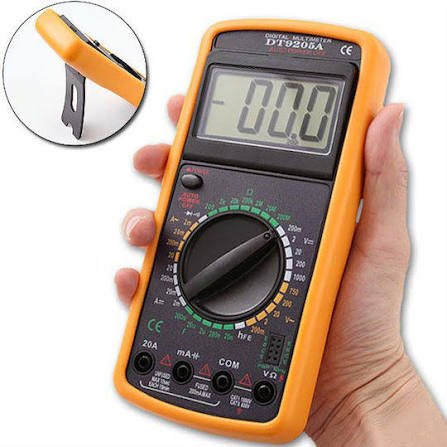

DT9205M Digital Multimeter, 3½ Digit, with Capacitance, hFE and Continuity Buzzer

A good digital multimeter is the most important tool for anyone working with electricity or electronics. The DT9205M multimeter gives you all the key measurements in one strong, easy-to-read meter. Use it to check house wiring and sockets, repair phones and appliances, test batteries and solar systems, or build Arduino projects.

The large LCD display shows clear readings up to 1999. The continuity buzzer beeps when a circuit is complete, so you can find broken wires fast without looking at the screen. Data hold freezes the reading so you can note it down. Auto power-off saves the battery if you forget to switch it off.

Its rubber holster protects the meter from drops and bumps, making it tough enough for daily use in workshops, on site and in the lab. It’s a top choice for KNUST and technical university students, electricians and repair technicians across Ghana.

Key Features

• Measures AC/DC voltage, AC/DC current, resistance and capacitance.
• 20A current range for high-current circuits.
• Capacitance measurement. Test capacitors without a separate meter.
• Transistor hFE test. Check NPN and PNP transistors.
• Diode test. Shows the forward voltage.
• Continuity buzzer. Find broken wires and bad connections quickly.
• Large 3½-digit LCD (max reading 1999).
• Data hold. Freeze readings on the screen.
• Auto power-off. Saves battery life.
• Low-battery indicator.
• Overload protection. Helps prevent damage from wrong range selection.
• Protective holster for drop resistance.

Technical Specifications

How to Use the DT9205M Multimeter

Measuring voltage (e.g. a battery or socket):

1. Plug the black lead into COM and the red lead into VΩ.
2. Turn the dial to DCV (batteries, solar, electronics) or ACV (wall sockets).
3. Choose a range higher than the voltage you expect.
4. Touch the probes to the circuit and read the display.

Measuring current:

1. Move the red lead to the mA socket (small currents) or the 20A socket (large currents).
2. Select the matching DCA or ACA range.
3. Connect the meter in series with the circuit, never directly across a power source.

Testing continuity:

1. Put the red lead in VΩ and turn the dial to the diode/buzzer symbol.
2. Touch the probes to both ends of the wire. A beep means the connection is good.

Safety Tips

• Always start on the highest range if you don’t know the voltage or current.
• Never measure voltage with the red lead in the mA or 20A socket. This can blow the fuse or damage the meter.
• On the 20A range, measure for no longer than 10–15 seconds, then let the meter rest.
• Switch off power before measuring resistance, continuity or capacitance.
• Discharge capacitors before testing them.
• Check the test leads for damage before each use.
• Take extra care with mains (230V AC) circuits. Keep your fingers behind the probe guards.

Who Is It For?

• Electricians: checking sockets, wiring, breakers and installations
• Phone and laptop repairers: testing batteries, chargers and boards
• Solar installers: measuring panel, battery and controller voltages
• Auto mechanics: car batteries, alternators and wiring
• Engineering students: lab work, practicals and projects
• Hobbyists and makers: Arduino, robotics and electronics projects

Works Great With

• Breadboard & Jumper Wire Kit
• Soldering Iron Kit
• 9V Battery
• Arduino Starter Kit
• XL6009 Boost Converter

Package Includes

• 1 × DT9205M Digital Multimeter
• 1 × Pair of test leads (red and black)
• 1 × Protective holster
• 1 × User manual
• 1 × Gift box
• (9V battery not included)
