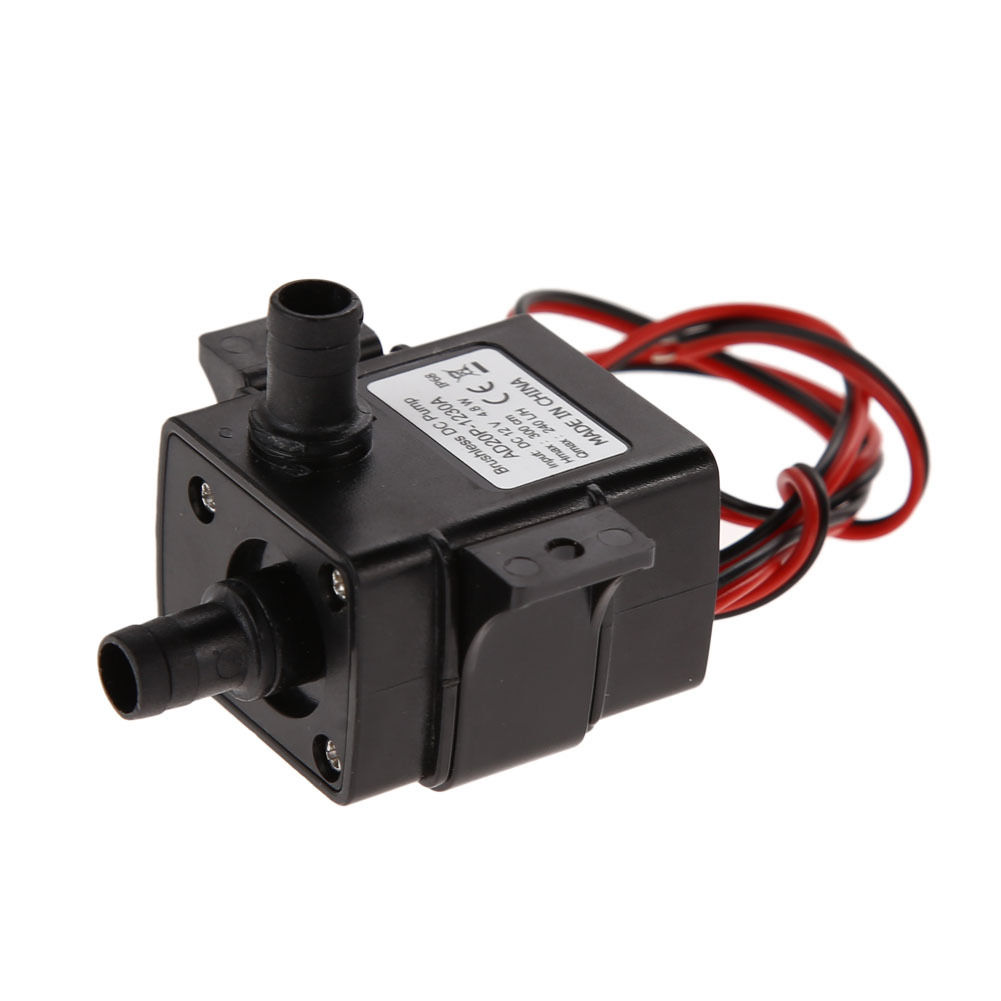

DC 12V Ultra-Quiet Submersible Water Pump (240 L/H)
₵90.00
This 12V Submersible Water Pump is a compact yet powerful solution for moving liquids silently. With a flow rate of 240 liters per hour, it is ideal for small aquariums, tabletop fountains, and water cooling projects.
Critical Warning: This is a submersible pump. It must be completely under water before you turn it on. Never run it dry, or the internal motor will burn out in seconds.
Out of stock
Key Features
- Submersible Design: IP68 waterproof rating allows you to place the pump completely underwater.
- Ultra-Quiet Operation: A brushless motor keeps noise levels to a minimum, perfect for indoor applications.
- 12V DC Power: Runs on a safe, low-voltage 12V DC supply.
- Continuous Flow: Provides a steady flow rate of approximately 4 litres per minute (240 litres per hour).
- Long Lifespan: Brushless motor technology ensures durability and long-term continuous operation.
Technical Specifications
| Feature | Specification |
| Model | (Commonly JT-280 or similar) |
| Operating Voltage | 6V – 12V DC |
| Rated Current | ~300mA @ 12V |
| Max Flow Rate | ~240 L/H (4 L/min) |
| Max Water Lift (Head) | ~3 meters (9.8 ft) |
| Noise Level | <40dB |
| Waterproofing | IP68 (Fully Submersible) |
| Outlet Diameter (Outer) | ~8.5mm |
| Inlet Diameter (Outer) | ~8.5mm |
| Dimensions (Approx.) | 55mm x 34mm x 41mm |
| Cable Length | ~45cm |
How to Use & Wiring
This pump is very simple to use. It has only two wires:
- Red Wire: Connect to Positive (+) of your 12V DC power supply.
- Black Wire: Connect to Negative (-) / Ground (GND) of your supply.
Important Notes:
- Do Not Run Dry: Never operate the pump without water. Running it “dry” (in the air) can damage the motor quickly.
- Submerge First: Always submerge the pump in water before applying power.
- Polarity: The pump is polarity-sensitive. It will not run if the red/black wires are reversed.
Common Applications
- Small Aquariums & Fish Tanks
- Desktop Water Fountains & Water Features
- Hydroponics & Plant Watering Systems
- PC or CPU Liquid Cooling Loops
- Science Projects & Prototypes
- Miniature Waterfalls
