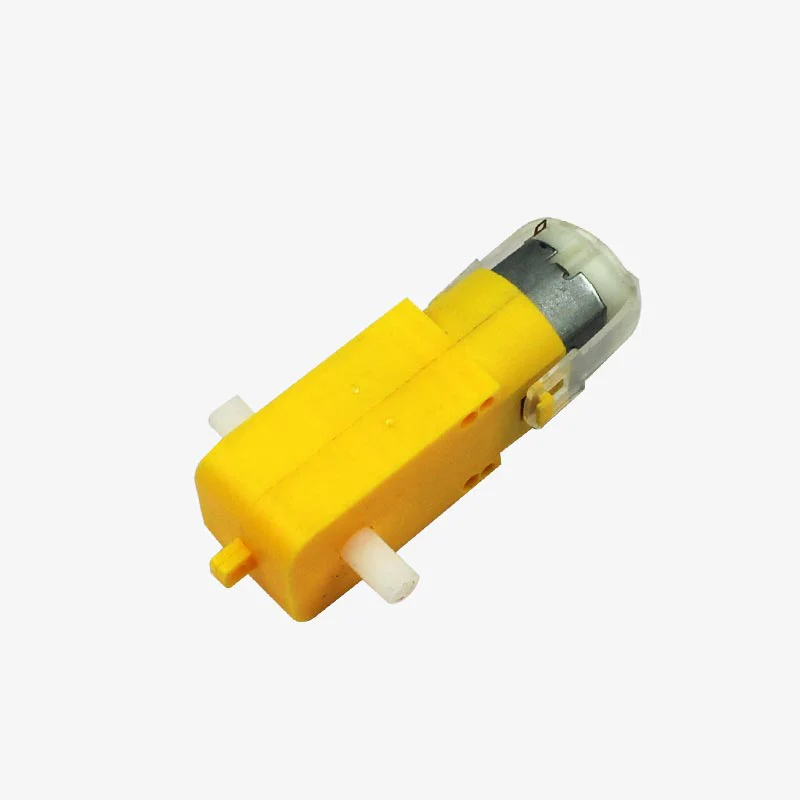

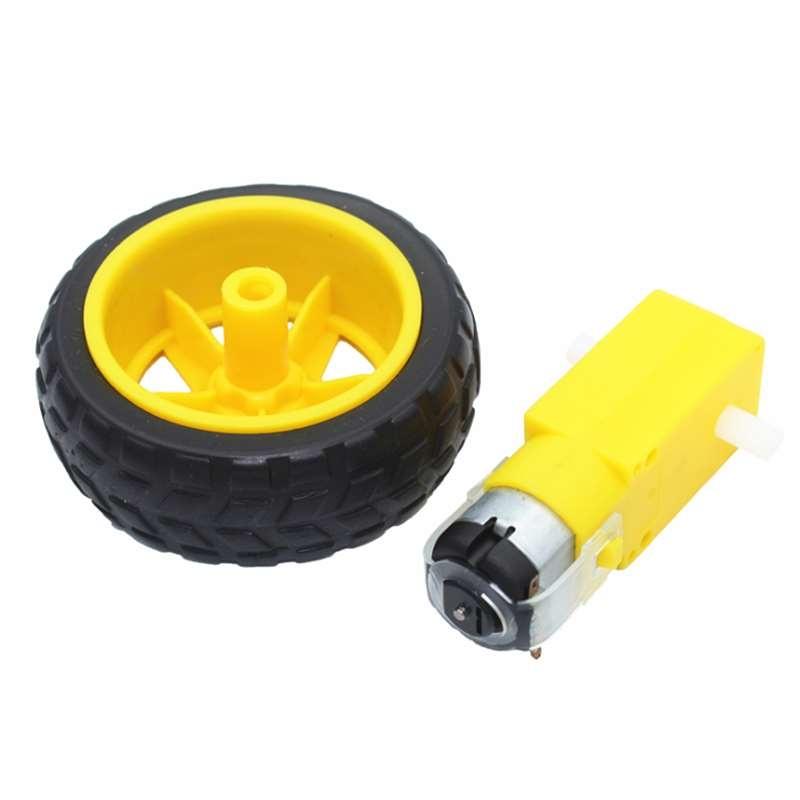

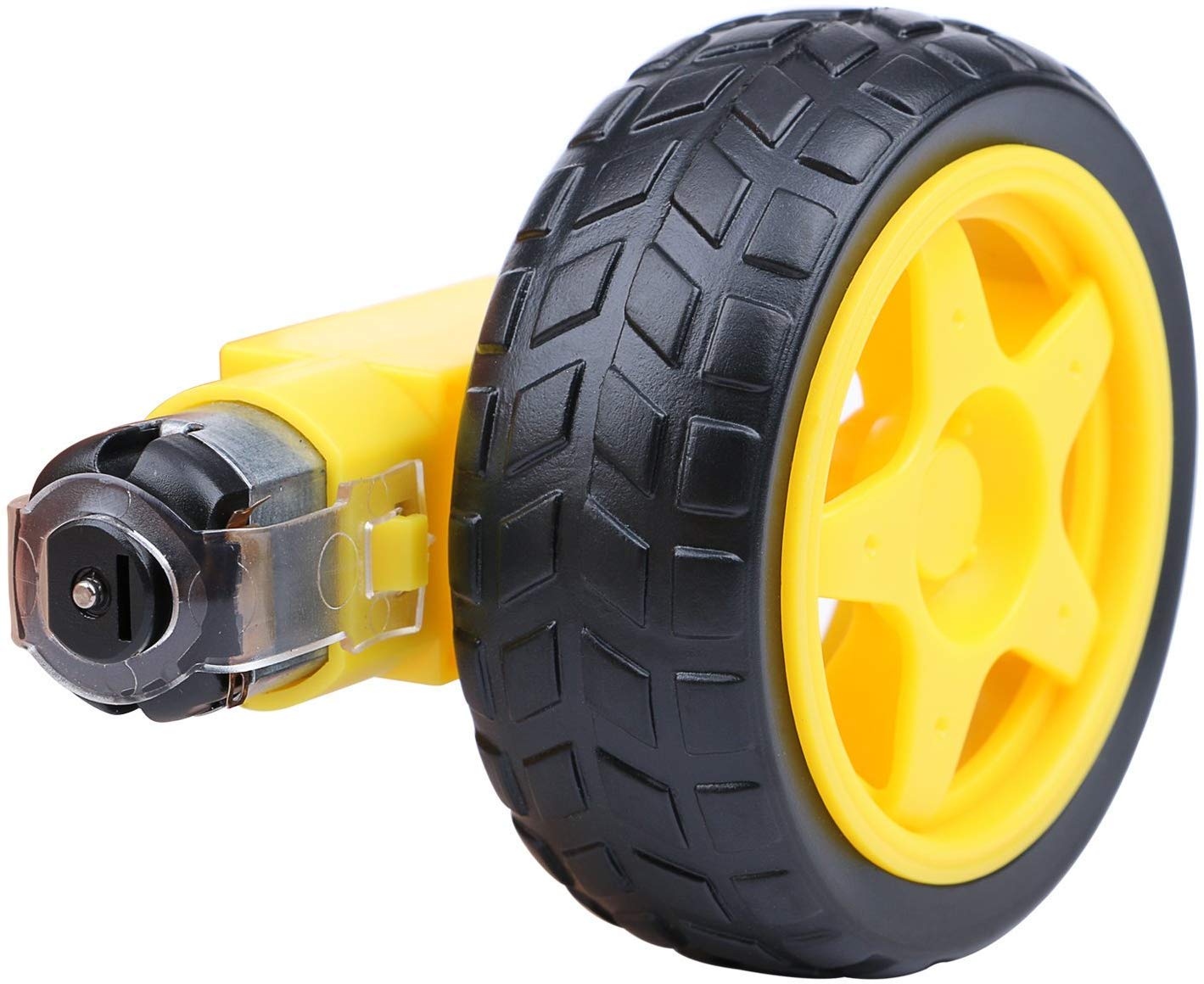

Geared DC Motor 100 RPM (Dual Shaft ) with Wheel
Original price was: ₵17.00.₵15.00Current price is: ₵15.00.
Dual shaft geared motors are useful in robotics applications. Shaft on both sides allows the user to use a Wheel and an Encoder simultaneously. Not only this, the user gets enough headroom for the orientation of the motor, and it can be used in any orientation as per the application.
It is a plastic-based geared dual-shaft DC motor operating between a voltage range of 3V to 9V and has a torque of 0.8 Kg/cm with an RPM of 100, which is pretty decent for most applications. It is recommended to use this motor with more than 5V to have optimum torque in working conditions.
10 in stock (can be backordered)
Dual Shaft DC Geared Motor (100RPM) Features and Specifications:
Features:-
- Low cost
- Ease of usage in multiple applications.
- Lightweight, so a reduced level of inertia.
- Absorbs shock and vibration.
- No lubricant required. Maintenance-free.
- Low coefficient of friction.
- Corrosion-resistance;
- Silent operation.
- Tight tolerances ensure no drifting in different scenarios.
- Plastic-based housing that gives a premium look.
Specification:–
Operating Voltage (VDC) : 3 ~ 12V
Shaft Length (mm) : 8.5
Shaft Diameter (mm) : 5.5
No Load Current (mA) : 40-180mA.
Rated Speed After Reduction (RPM): 100
Rated Torque (Kg-Cm) : 0.35
Weight (gm) : 30
Dimensions in mm (LxWxH): 70x35x22
Gearbox Shape : Straight
Dual Shaft DC Geared Motor (300RPM) Applications:
- Robotics
- Automation
- In various vehicles
- Toys
- Different gear movement-related operations
Package Contains
1x 100 RPM Dual Shaft DC Geared Motor
